Review: 42114 6x6 Volvo Articulated Hauler
Posted by Huw,
Now that the summer Technic selection has been cut by a third there will be just two sets released on 1st August, including the Powered Up equipped 2193-piece 42114 6x6 Volvo Articulated Hauler, the largest and most expensive of the pair.
It's a huge, imposing and impressive model that introduces a first for Technic: a motorised automatic gearbox, which works rather well...
The prototype
Previous Volvo models have included the Swedish manufacturer's model designation in the set name but not this time for some reason. Nevertheless, the stickers identify it as a A60H which looks like this:
From agg-net.com
It's typically used in quarry and mining operations and has a 55 tonne capacity. It's powered by a 16-litre Volvo engine and has a maximum speed of 55km/h. It's about 12m x 4m in size. The LEGO version measures about 60cm x 18cm so it's roughly a scale of 1:20
Parts
A Control+ hub provides the brains, power and connectivity (via Bluetooth) to the model. It, and the XL and L motors below, were introduced last year.
This large angular motor is a re-coloured version of the one that comes with the educational 45678 SPIKE Prime Set. It's making its first appearance in a Technic set here.
It provides for absolute positioning and feedback on its position which makes it perfect for use in the model's steering mechanism.
This circular gear housing was first used in the 42109 App-Controlled Top Gear Rally Car but this is the first time I've encountered it. It forms a very compact and sturdy differential. A fourth 12t gear is dropped into the top before clipping the red gear onto it.
The sticker sheet is small for the size of model and consists primarily of branding.
Construction
The majority of the set's mechanisms are housed in the rear section of the truck's chassis, along with the two Control+ motors.
The four wheels are connected to the XL motor via a gearbox between them which has four positions: neutral, plus three for driving the vehicle at different speeds. When in neutral the motor's output is diverted to the linear actuators that will be attached to the sides which raise and lower the tipper.
The motors are mounted side by side at the front of the rear section of the truck. The smaller motor operates the gearbox.
The orange gear shift piece was first seen in the Bugatti Chiron. It revolutionised gearbox design because it allows gears to be shifted by rotating an axle and that's exactly what happens here: it's directly driven by the smaller motor thus facilitating an automatic gearbox.
The cab section of the truck houses the cab, of course, and the engine, the crankshaft of which can be seen below. The angular motor used to steer the vehicle sits under the driver's seat.
A third differential is housed between the wheels and, like the rear two axles, it's connected to the gearbox making this a 6-wheel drive vehicle.
The cab assembly is connected to the rear section via a turntable and universal joint which allows it to both turn and tilt independently.
The Control+ hub is mounted behind the cab which makes it difficult to access the on/off button, but they've thought of that: rotating the light on the top moves an arm which presses it for you.
There's a lot of detail in the engine compartment, as you'll see below.
The orange handrails of the prototype have been very accurately captured here and, like its use in 42053 Volvo EW160E, orange adds a welcome splash of colour to the model.
The wheel arches are the same as those used in 42110 Land Rover Defender and have a subtle black line printed on the edge.
The set contains no less than 35 yellow panels, the majority of which are used for the tipper.
The final part of construction involves connecting the tipper to the chassis using an axle at the back and two of the new long linear actuators on the sides.
The completed model
At 60cm long it's big and impressive. With all that technology on board it's also quite heavy.
There's been a lot of talk lately about pin colours and blue ones in particular looking out of place. At the front of this model, the designer has used inconspicuous tan non-friction pins instead of more appropriate blue or black ones to avoid the colour clash that so many people seem to have a problem with.
The cable slack behind the hub looks a bit untidy but the real vehicle has flexible pipework and so on between the articulated sections so it's not too out of place.
The gearbox and drivetrain is visible from underneath, and when the tipper is raised.
Operation
It's operated entirely from the Control+ smartphone app, of which I've been provided with a pre-release version.
The only manual 'movement' on it is opening the engine compartment to see the not inconsiderable detail inside. The compartment is opened by pulling out a yellow pin at the front which can then be used to prop it open. There are 9 drum-lacquered silver pieces in the set, used in the engine and for the exhaust stack.
The hauler is added as another option to the start screen of the Control+ app and once it's been selected and you're connected to the hub you're presented with this control screen, one of two.
In this mode, the vehicle is driven by sliding your finger round the square at the bottom left. It works, but unfortunately if your finger goes outside it, the truck stops, so I found it difficult to use.
The most interesting thing about the model is the automatic gearbox. As you move the truck forwards and it accelerates, the gearbox clicks through gears 1 to 3 as it does on a car's automatic transmission. It works very smoothly.
At first, before I realised what was going on, I thought the clicking I could hear as it moved was gears slipping or something, but no, it was the gearbox stepping up through the gears. You can also select 1st and 2nd gears manually although there doesn't seem to be much point. The gearbox continues to work in this way when reversing, so there are three reverse gears, which probably isn't prototypical.
As soon as you stop the vehicle it straightens up and the gearbox returns to neutral which then allows you to tilt the tipper using the buttons on the left.
The second operation mode is accessed by swiping left and this one works much better in my opinion. Using two fingers, you drag the yellow sections of the circle out and around to control the speed and to steer.
Again, there's a choice of manual or automatic transmission, and the centre of the circle shows a number of statistics. There's an option to specify the weight of the load you want to pretend is being carried, which presumably affects acceleration and other operations.

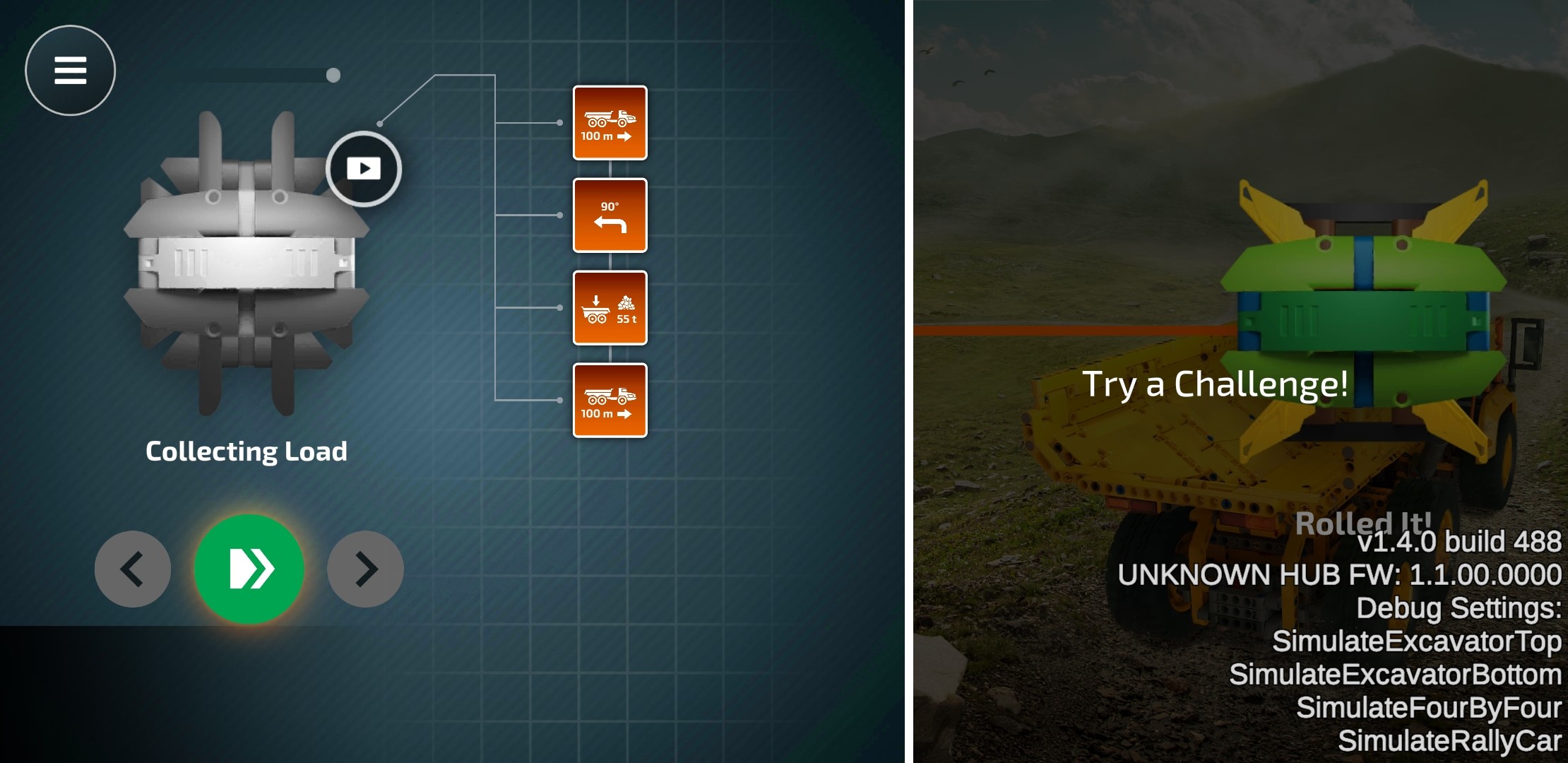

Finally, at least on this pre-release version, there is the gamification aspect, the challenges: e.g. move forwards, discharge the load, turn, come back, that sort of thing, to win a badge. I didn't dwell of it but I suspect kids will find it more entertaining than I.
The linear actuators operate the tipper smoothly although the maximum angle achievable is not quite that of the real vehicle, which is 70 degrees.
Verdict
It's a large and impressive model that has captured the likeness of the A60H pretty well. However, it's not overly complicated, so doesn't take that long to build, which is either a good thing or a bad thing, depending on your point of view.
Like the concrete mixer truck we reviewed the other day, this set does not contain many System parts, which I appreciate: I like my Technic sets to be pure. Apart from the usual tiles and 1x1 round plates and other small parts here and there, they are used only to form the shape of the cab roof.
It's an attractive model to display but of course that is not the point of it. It's designed to be operated so whether you'll enjoy doing so will depend on your opinion of having to use a smartphone to do so. There's no doubt that it's very clever and enables otherwise impossible actions to be performed: for example, feedback of the drive motor's RPM is presumably used to signal to the other motor to change gear, but I can't help feeling that a more traditional remote controller would make operating it a more tactile and enjoyable experience. Personally, I find opening the app, turning Bluetooth on, pairing the hub, then waiting while the connection is established to be a bit of a faff.
The major criticism I have about its operation is that the turning circle is massive: probably around 2 metres. You therefore need a very large area to play with it in, otherwise you'll be forever going forwards-and-back, turning a bit, forwards-and-back to negotiate a route around the obstacles in your room.
Overall, though, I am impressed and I think it's the best Technic Control+ model thus far released. Attractive, clever, and quite fun to operate, at least at first, until the novelty wears off...
This is definitely a model that benefits from a video review, so I will again direct you to Sariel's:
(I've just noticed when comparing the image above to the one in Sariel's review that I've applied the Volvo name stickers on the wrong sides. I'll swap the panels round...)
It will be released on August 1st at LEGO.com, priced at £230, $250 and €250, which makes it an expensive set, but about what I'd expect for 2000+ pieces, three motors and a hub.
Thanks to LEGO for providing the set for review. All expressed opinions are my own.
