Externally powering the Technic hub
Posted by Huw,
Last year I wrote about running Pybricks on Powered Up hubs, in particular the 4-port grey Technic hub which is a powerful device but essentially useless without it.
In this article I show the method I use to modify them so that they can be powered from an external 5v USB power supply. It is not suitable for all applications, especially if your model moves, but for Great Ball Contraptions (GBCs) and other static models it negates the need to use batteries, which is particularly useful if you're planning to run them for a whole weekend at a public show.
I will also explain how to install Pybricks on the hub and use a simple program that runs motors at a constant speed, which is often all that's needed for the majority of GBC modules.
Please be warned, this article contains explicit photographs of LEGO pieces being mutilated.
What you will need
Tools
- Soldering iron and solder
- Small flat head screwdriver
- Electric drill, 4mm and 10mm bits, small block of wood
- Sharpie and ruler
- Round file
- Glue, if you're using the clip-on battery cover version of the hub
Parts
Technic Powered Up hub, either the older version with clip-on battery cover, or the newer one with screw-on cover. As they are of limited use without installing Pybricks they are dirt cheap on BrickLink, around $15/£12.

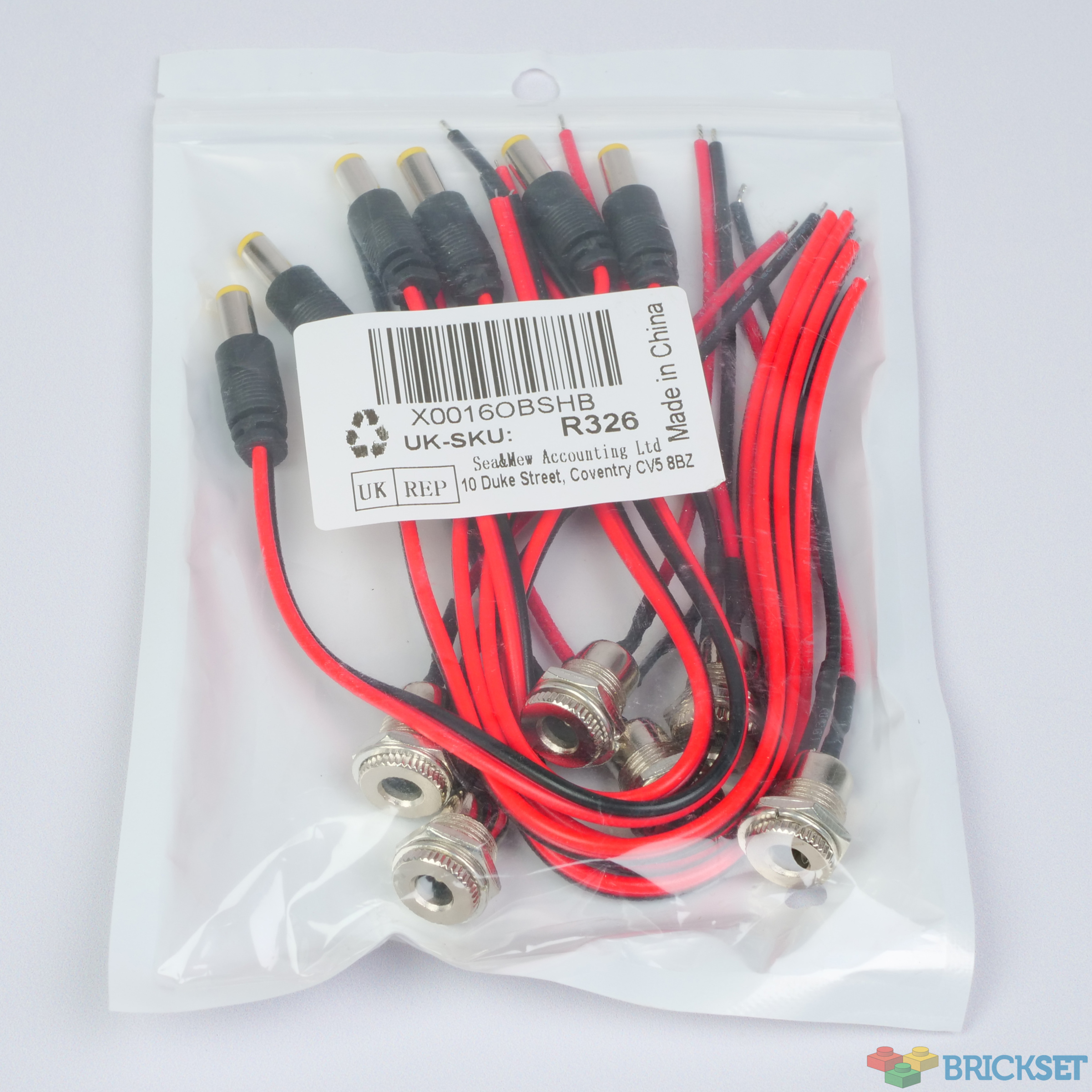

5.5mm jack socket. I use these from Amazon.co.uk which are already wired up. There's 6 in the pack, along with 6 plugs, which we won't be using.

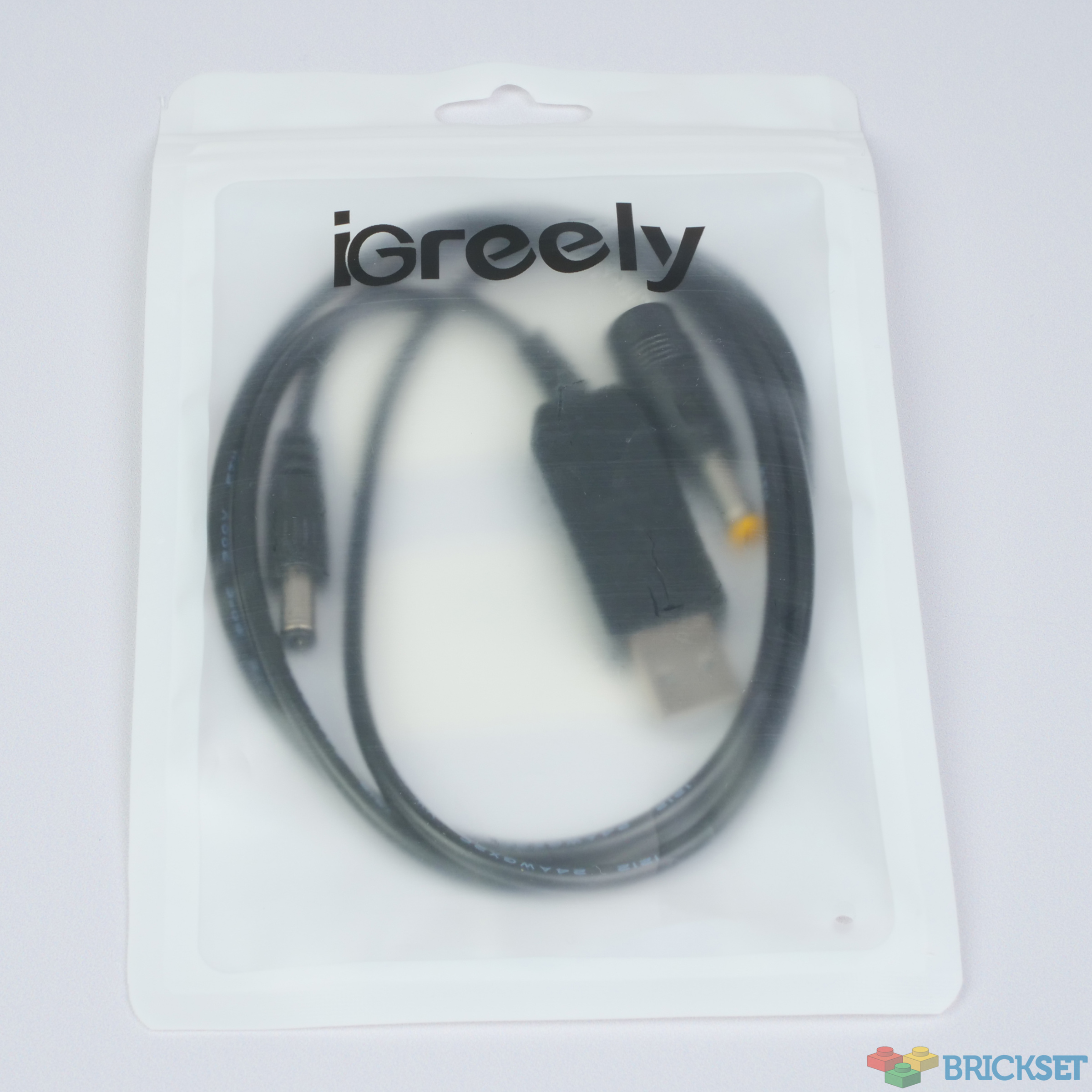

5v USB to 9v adapter, such as this one from Amazon.co.uk. This enables the hub to be powered using a USB phone charger, of which you probably have plenty.
Finally, if you're using the clip-on battery cover version you'll also need four 1x1 bricks, two 1x1 plates and two 1x1 tiles in any colour.
Modifying the hub
I have used the older style clip-on lid variety of hub to create this guide. I don't have any of the newer types to hand to modify, but the process should be much the same. I'll point out where it's likely to differ.
Please note that you perform the procedure detailed below at your own risk, and you should only proceed if you are competent at drilling and soldering.
1. Remove battery holder
Remove the battery cover, take out the battery holder and discard. It won't be needed any more.

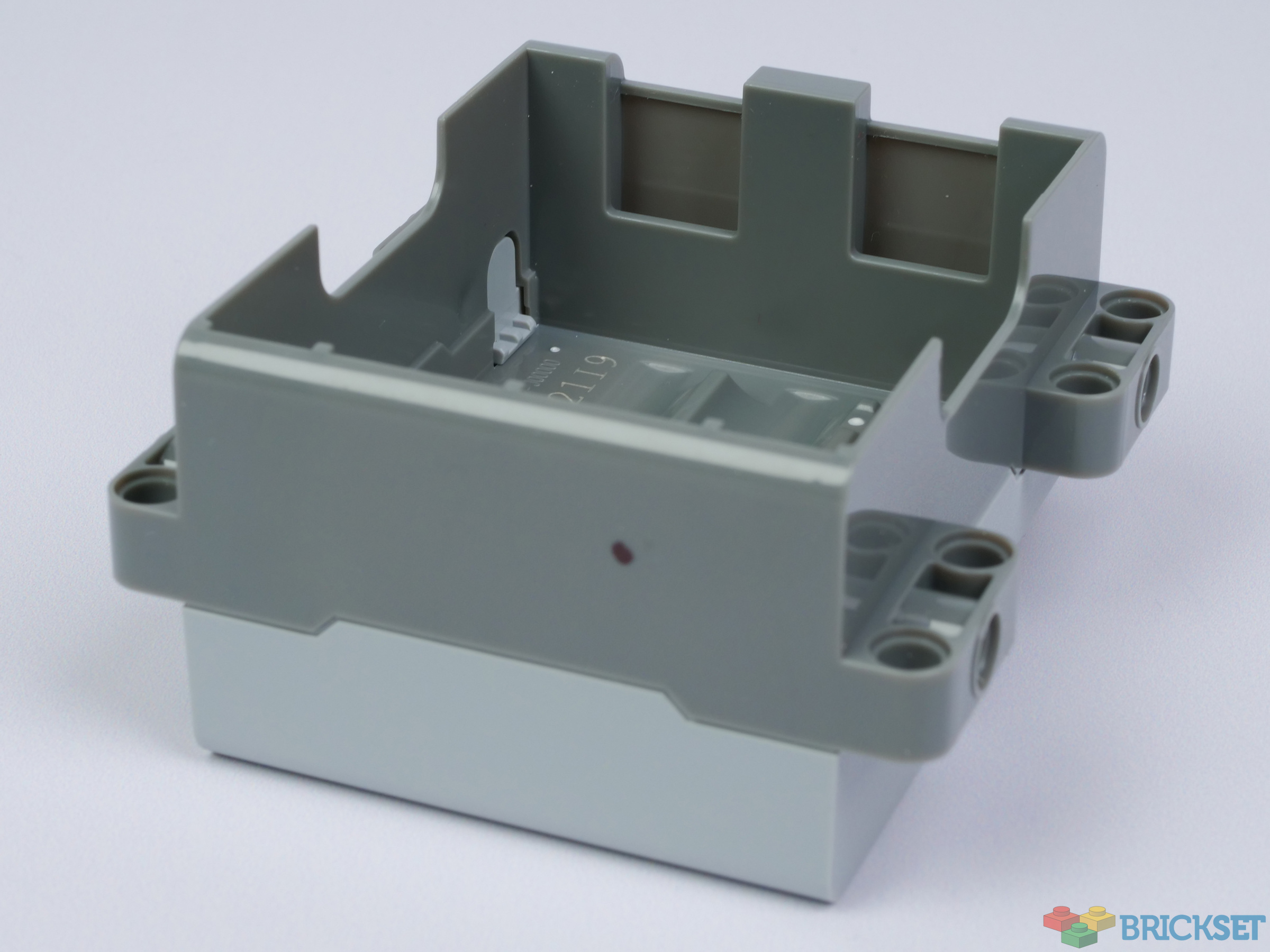

2. Mark a hole
Mark a hole with the Sharpie, 10mm from the top and 18mm from the right, as viewed here.

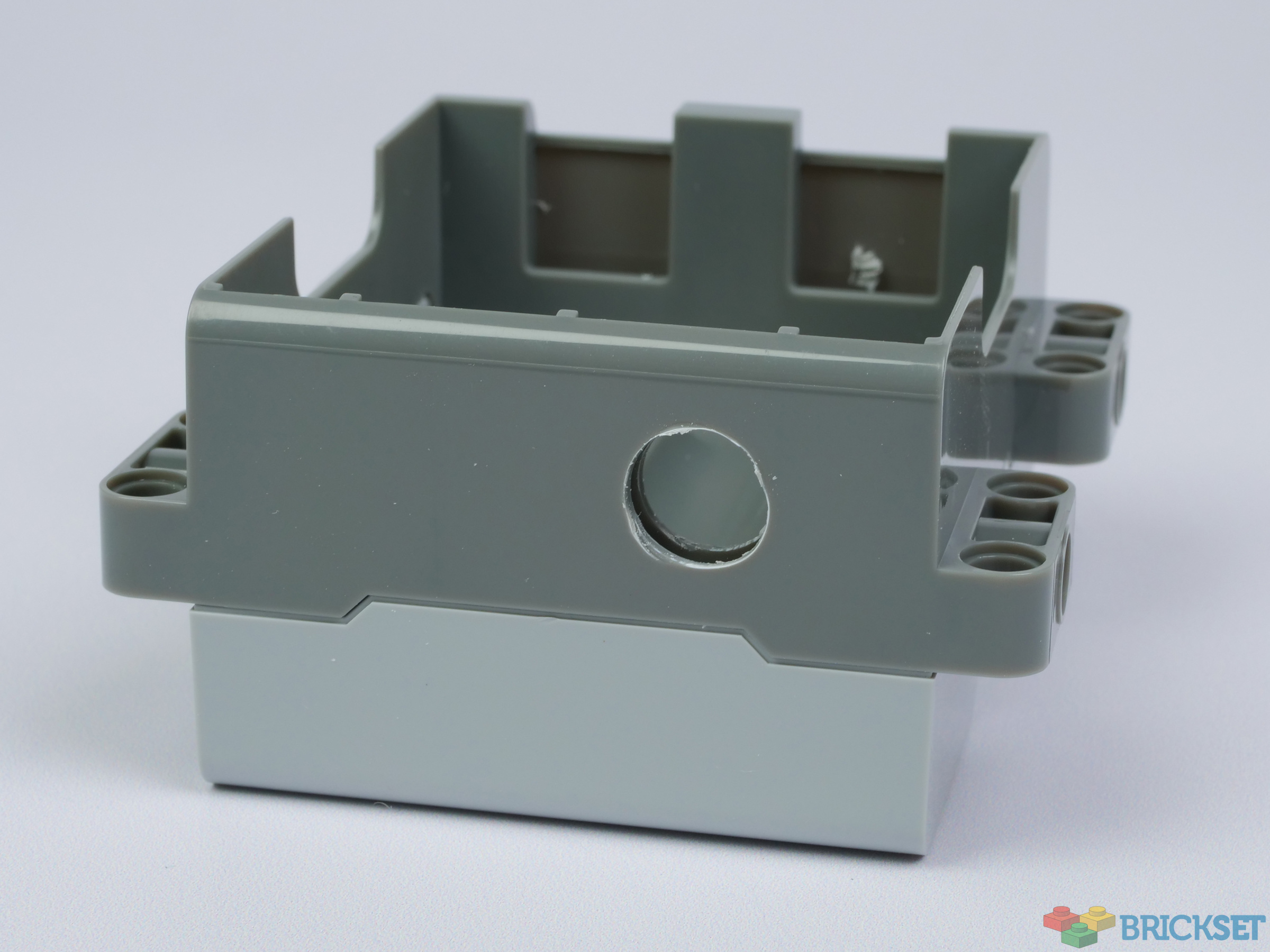

3. Drill
Drill where you've marked, first with the 4mm drill bit, then the 10mm. You will find you'll get a cleaner hole if the 10mm bit is rotating before introduced to the 4mm pilot hole, and it will help if you hold a piece of wood inside the hub to drill into.
4. Splay the connectors
Use the screwdriver to bend the power connectors upwards so that they are roughly horizontal. This will make them easier to solder onto.
5. Insert the socket
Push the socket into the hole. You may find that you need to file the hole out a bit to get the socket to fit because its external diameter is fractionally larger than 10mm. Replace the washer and nut and screw finger-tight.

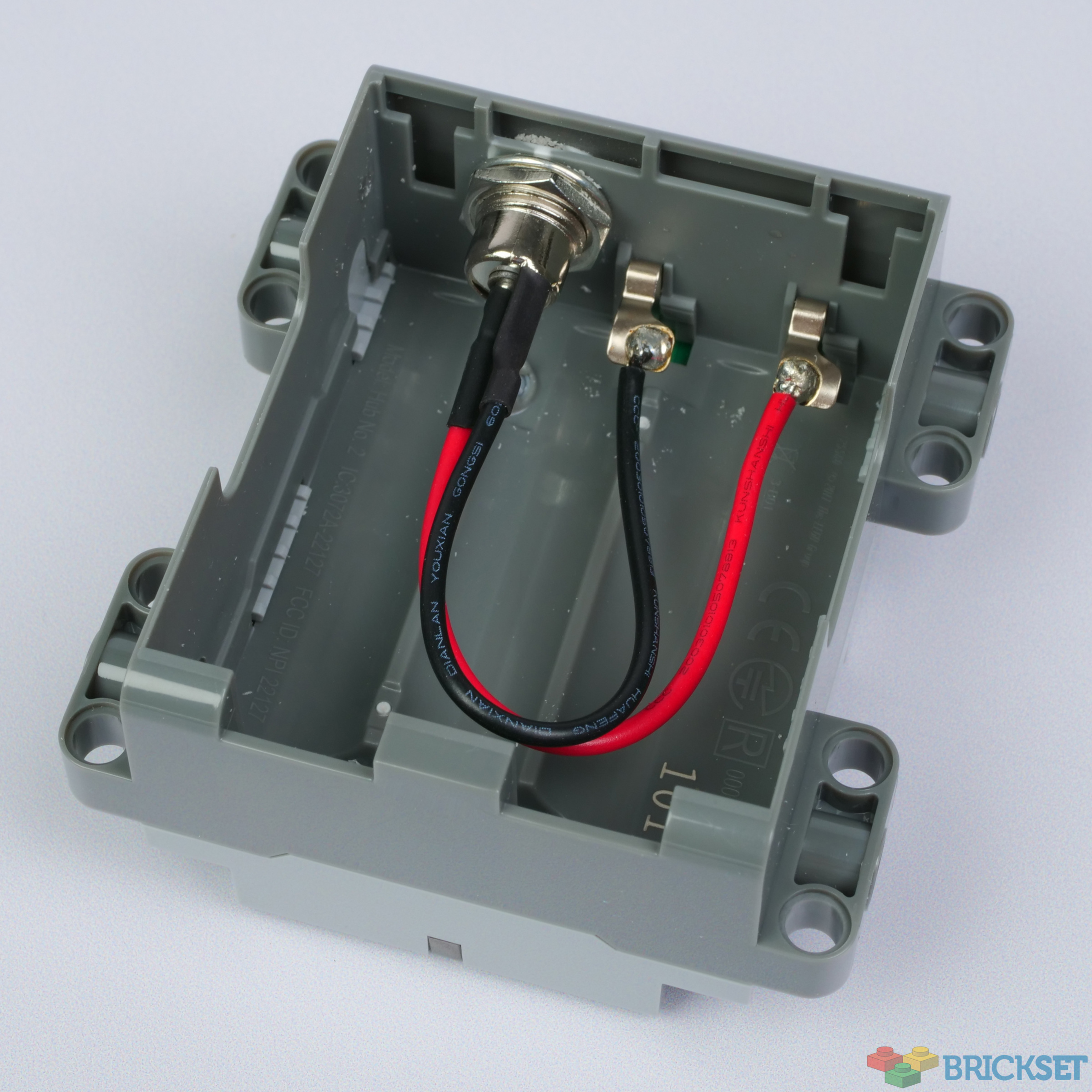

6. Solder the wires
A soldering tutorial is beyond the scope of this guide but suffice to say that the best way to do it is to melt a blob of solder onto each terminal, then introduce the wire to it while heating it with the iron. The ends of the wires I used are already soldered which makes things much easier.
The black negative wire should be connected to the left-hand terminal and the red positive one to the right.
Be sure to keep the hot iron away from the plastic case!
7. Glue supports
This step can be skipped if you're using the screw-on lid variety of the hub.
If you reattach the clip-on lid you'll find that the end above the connector is unsupported so to remedy that glue two stacks of two 1x1 bricks, a 1x1 plate and a 1x1 tile to the end, making sure the one in the corner is not on top of the light grey clip.
8. Replace lid
Job done!
The approximate cost of doing this is £12 for the hub, £1.50 for the socket and £8 for the USB to 9v adapter, a total of £21.50 (c.$25), which compares favourably with the cost of second-hand 9v train controllers nowadays that are usually used for powering GBCs and other models. The hub is also much smaller and lighter to transport!
Non-destructive method
If mutilating your hub is too much for you, an alternative is to 3D print a new battery insert and modify it to allow a tethered cable to enter through one of the holes in the side of the hub.
Installing Pybricks
Installing the Pybricks firmware on the hub is a very straightforward and quick process and, should the need arise, is reversible.

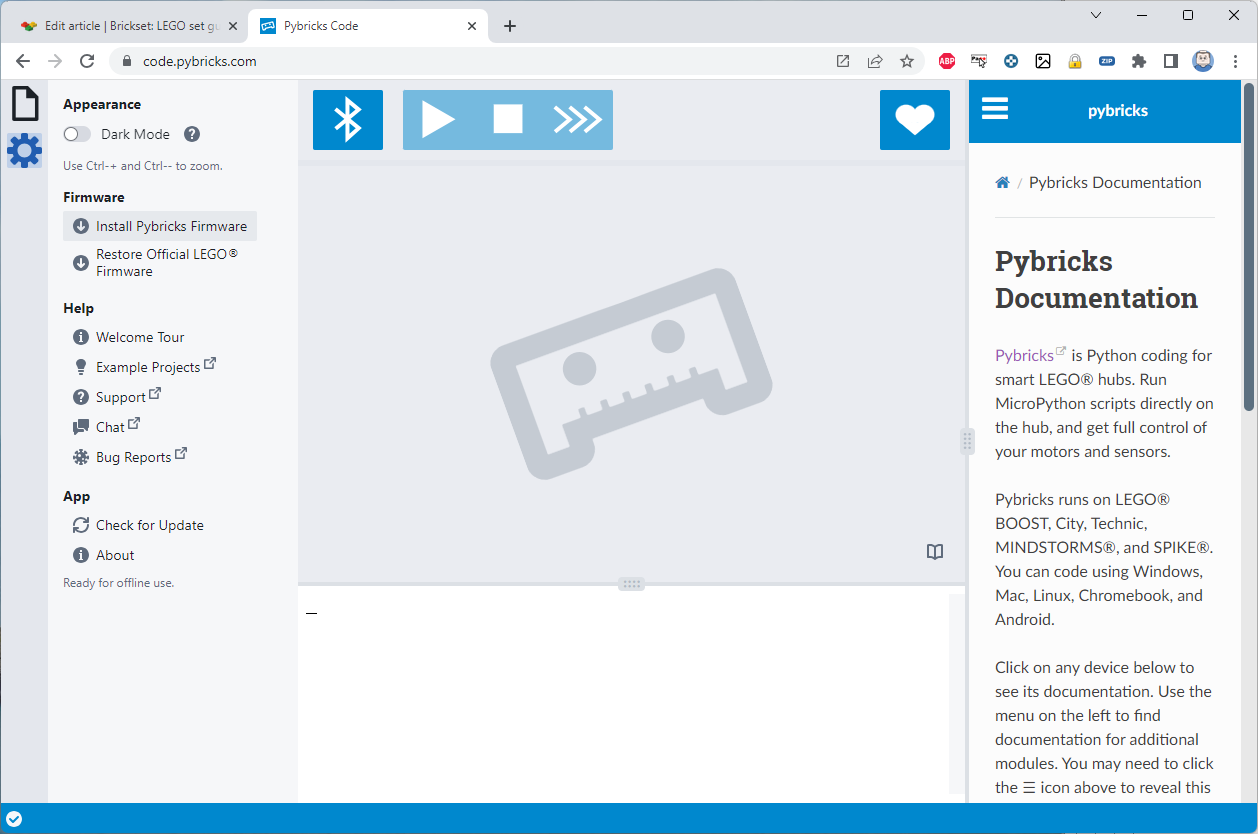

Navigate to the Pybricks development environment (IDE) at code.pybricks.com, click on the gear wheel on the left, then on Install Pybricks Firmware.

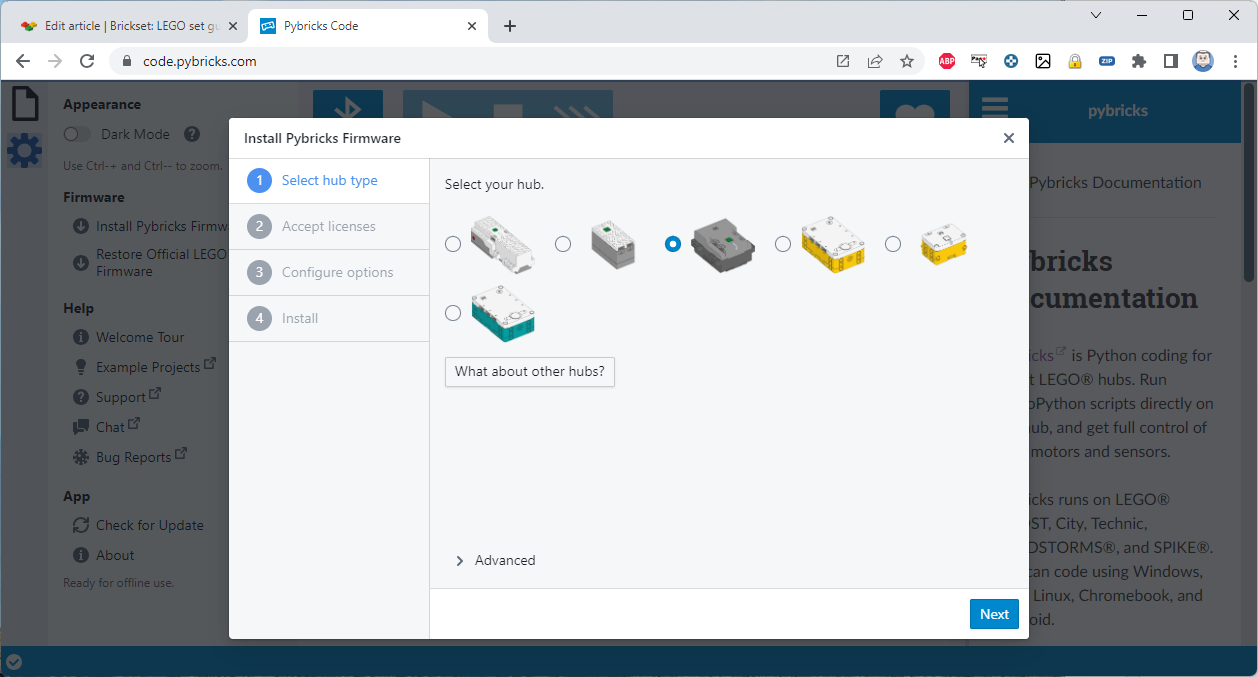

Select the Technic hub, click Next, accept the licence, click Next.

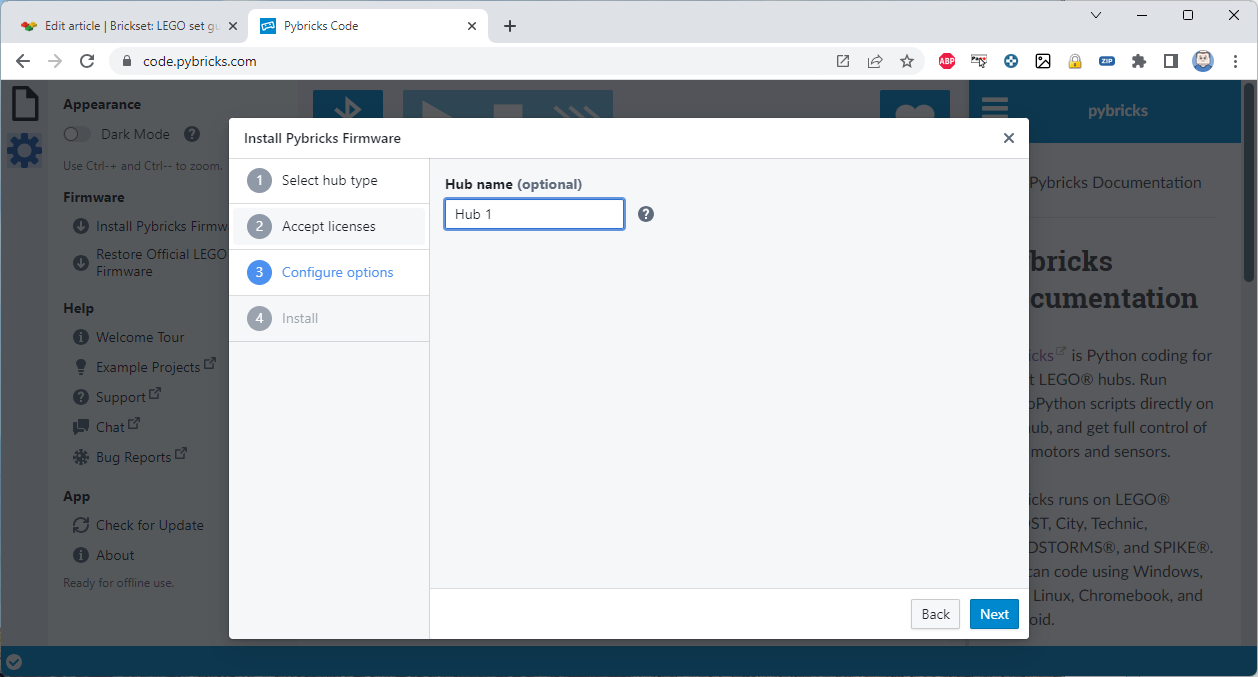

Give your hub a name and click Next.
Power up the hub using a USB adapter then follow the instructions given.
That's it: over in a couple of minutes.
Sample code
Once that's done you can use the PyBricks IDE to write Python code, connect to the hub via Bluetooth, then download and run your script.
Once downloaded it will be saved in the hub's memory and remain there ready to be executed by pressing the green button on the hub the next time you power it up. There's no need for phones or other devices to be tethered to it, which gives PyBricks a major advantage over LEGO's Powered Up solution.
If all you want to do is use a Powered Up (PU) motor in your model and run it at a constant speed the sample program below shows you how.
For added flexibility, it will look for motors in all four ports and if found run them at different speeds, which makes it a general purpose program suitable for the majority of GBC applications: simply plug your motor into each port in turn (remembering to stop and restart the program while doing so) and see which one provides the required speed.
If you have two modules with PU motors next to each other that run at different speeds you can use one hub running this code to power them both, although the length of the motor cables can be a restriction.
#import libraries
from pybricks.pupdevices import Motor
from pybricks.parameters import Color, Port
from pybricks.hubs import TechnicHub
from pybricks.tools import wait
# Declare the hub and flash the light red
hub = TechnicHub()
hub.light.blink(Color.RED,(250,250))
try:
# Declare a motor in port A
motor = Motor(Port.A)
# The next statements will only be executed if a motor is present
hub.light.on(Color.GREEN)
# Set the speed, in degrees per second, and run the motor
speed = 90
motor.run(speed)
# Print a message on the console
# (visible if the hub is connected to a device by Bluetooth)
print("Motor detected in port A, running at", speed, "degrees per second")
except:
# No motor found, do nothing
pass
# Repeat for the other three ports, doubling the speed each time.
try:
motor = Motor(Port.B)
hub.light.on(Color.GREEN)
speed = 180
motor.run(speed)
print("Motor detected in port B, running at", speed, "degrees per second")
except:
pass
try:
motor = Motor(Port.C)
hub.light.on(Color.GREEN)
speed = 360
motor.run(speed)
print("Motor detected in port C, running at", speed, "degrees per second")
except:
pass
try:
motor = Motor(Port.D)
hub.light.on(Color.GREEN)
speed = 720
motor.run(speed)
print("Motor detected in port D, running at", speed, "degrees per second")
except:
pass
# Loop indefinitely
while True:
wait(10)
To get the program onto your hub, cut and paste it into the PyBricks editor, click on the Bluetooth icon at the top to connect to your hub, then on the > button next to it.
If you need different speeds, or motors running at the same speed, or in reverse, you can of course modify the code to suit. The maximum speed of the two motors commonly found in Technic sets, as reported by Pybricks, is as follows:
- Small motor: 1470 degrees per second = 245rpm
- Large motor: 1525 degrees per second = 254rpm
I have a slightly more complex version of this code on all my hubs, so it doesn't matter which one I use for which module: every module will work with the code on every hub, which makes it easy when it comes to setting things up at a show.
I have merely scratched the surface of what's possible with the hub when coded with Pybricks. The PU motors have rotation sensors inside, and the hub can be controlled with the bluetooth remote control unit, so the sky's the limit even before adding external light, touch and other sensors. I therefore encourage you to read the extensive Pybricks documentation to find out more.
With external power and a relatively straightforward piece of Python code the Technic hub and Powered Up peripherals finally become useful. I hope this article has shown that for GBCs and other static models it's now practical to transition away from Power Functions motors powered by bulky and scarce 9v train controllers to more readily available modern components.
