Get the most out of your smart hubs with Pybricks
Posted by Huw,
The announcement last month that Mindstorms is being discontinued sent shockwaves through the LEGO robotics community, with many wondering what the future holds and whether their investment in the platform has been wasted.
Furthermore, LEGO's strategy concerning the wider Powered Up platform, of which Mindstorms is part, seems muddled, and the promised enhancements to improve compatibility and usefulness have yet to materialise.
The main limitation for many is that the relatively ubiquitous and affordable Boost, Powered Up and Technic hubs cannot be used autonomously: they need to be tethered to a smart device via Bluetooth to operate which limits their application considerably, and although the motors and sensors intended for use with each of the hubs share a connector, they are not supported universally by the different software platforms needed to program them -- of which there are currently five!
What's needed is a way to write code for every hub using a common development environment, which supports every sensor and motor, and which enables it to run as soon as the hub is switched on, something especially useful in an exhibition environment, for example.
In time LEGO's refocused Build & Code team may well deliver that, but there is a solution available already: Pybricks.
What is Pybricks?
Pybricks is an open source, community project that enables Python to be run on smart hubs including the three listed above, and the Spike Prime/Mindstorms and Spike Essential ones as well.
Pybricks Python scripts are executed directly on the hub and the development environment used to create them will run on just about every computer and mobile device: Windows, Mac, IOS, Linux, Chromebook and Android, in fact pretty much anything with a web browser.
Pybricks supports plugging any motor or sensor with a PoweredUp connector into any hub, so if for example you have a Boost colour sensor, or even some original WeDo sensors, and you want to use them with the Mindstorms hub, you can do so. In fact the only device not supported by Pybricks is the original WeDo hub, which does not support firmware updates.
The latest version of the Pybricks development environment can be found at https://beta.pybricks.com and while it's officially still in beta I have had no problems with it. In fact, it seems very robust and complete.
Unlike the SPIKE app, which is designed primarily for kids to use in an educational setting, the Pybricks development environment emphasises productivity and ease of use for seasoned programmers, although that's not to say that it's not suitable for everyone.
There is more of a learning curve than using the SPIKE app's Scratch-based word blocks given that Python is a text-based language, but if you've ever programmed in another high-level language such as Basic, Pascal, JavaScript or C you'll be able to pick it up in no time.
Furthermore, the documentation is exceptional. It's easy to access, comprehensive, and full of useful examples.

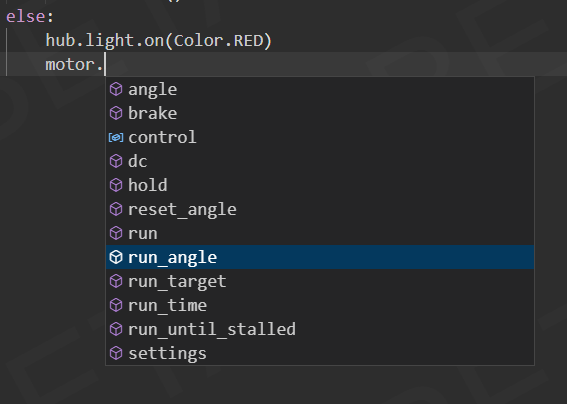

Code-completion provides prompts as you type, to remind you of object methods and so on, which further simplifies learning it.
Getting started
Before you can use Pybricks with your hub(s) you need to flash them with new firmware, which might seem daunting, but it's quick, easy, and the official LEGO firmware can be reinstalled if needed.
Once that's done, you connect to the hub via Bluetooth, write your code, then download it to the hub in seconds. When you're happy with it, you can disconnect Bluetooth and run your program autonomously simply by switching the hub on and pressing the power button.
Making the Technic hub useful at last
One of the reasons I wanted to experiment with Pybricks is that I have something like a dozen of the Technic hubs that I thought might be useful for GBC modules, but with the official PoweredUp app you are limited to hooking them up to a tablet and keeping it connected while the program runs on it, which is slow, inefficient and totally impractical if you have multiple hubs and want to run them all day.
Pybricks also makes it possible to use the 88010 Remote Control with this hub, opening the door to remote control of the Technic Powered Up models without the need for a phone or tablet, although that's not something I've tried yet.
Incidentally, it's interesting to note that to buy a Technic hub from LEGO will cost you £80/$90, but you can get them on BrickLink for less than £15/$15 which I think is a good measure of how useful the community currently finds them!
I have now successfully written Python code for many of my GBC modules and, when 4 or fewer ports are needed, can utilise these plentiful hubs rather than the far more expensive SPIKE/Mindstorms ones. Pybricks has given them a new lease life.
The remaining disadvantage with them is that they are battery powered, thus unsuitable for running GBCs all day at a show, so I solved that problem by removing the battery holder and fitting a power socket on one end of the case, so they can be powered by a 9v transformer.
In a future article I will describe how I did that, and also provide sample code for a simple GBC module.
Verdict
Pybricks is a powerful platform that delivers what LEGO has so far been unable or unwilling to: complete compatibility across the entire Powered Up ecosystem, and a means to download your program onto any hub and have it run as soon as it is switched on.
As a result it has made the system far more useful, particularly the cheaper hubs and motors found in Technic and other sets. They are freed from their Bluetooth tether at last!
I have only just scratched the surface of what's possible with Pybricks and its advantages over LEGO's solution, but hope this article will inspire you to investigate it for yourself, and if you have any questions I will try and answer them, although I am far from being an expert.
